Bank Transfer Payments Guide (SG)

Customer Profile API

πŸ“—

Learn how to use the Payment API to enable Singapore bank transfer deposits from your user.

Overview

Each connected user on your platform will be assigned a unique virtual account number for bank transfer payments. We check the sender's name against the user's name to ensure the payment is being made to the correct virtual account. This creates a secure and seamless experience for your users and makes it easy for your team to reconcile these transactions.

Learn more about virtual accounts β†’

680680

UI example of bank transfer instructions

Payment TypeFromTo
Bank Transfer PaymentUser's bank accountBusiness Account
curl --location --request POST 'https://sandbox.xfers.io/api/v3/payment_methods/virtual_bank_accounts' \
--header 'Accept: application/json' \
--header 'Content-Type: application/json' \
--header 'X-XFERS-APP-API-KEY: t4wsjxpwtk6o9tz20j4baj4ifwibin100py1vrvfsqh' \
--form 'data[attributes][referenceId]="hello_world"' \
--form 'data[attributes][bankShortCode]="CIMB"' \
--form 'data[relationships][customerProfile][data][id]="customer_profile_08d5ffe5-8a02-4dc2-aabb-9057b8ab3c65"'
curl --location --request POST 'https://www.xfers.io/api/v3/payment_methods/virtual_bank_accounts' \
--header 'Accept: application/json' \
--header 'Content-Type: application/json' \
--header 'X-XFERS-APP-API-KEY: {{APP_API_KEY}}' \
--form 'data[attributes][referenceId]="{{MERCHANT_REF}}"' \
--form 'data[attributes][bankShortCode]="CIMB"' \
--form 'data[relationships][customerProfile][data][id]="{{CP_ID}}"'
  • To provide payee details for your user, initiate a request to create a virtual bank account to display bank transfer instructions.
  • This enables your user to add a payee in their bank app using the fields: bank name, recipient name and bank account number.

Step 2 β€” Add callback URL

On a successful completion of a deposit transaction, StraitsX will send a callback notification to you via a callback URL indicated on the StraitsX Business Dashboard.

35103510

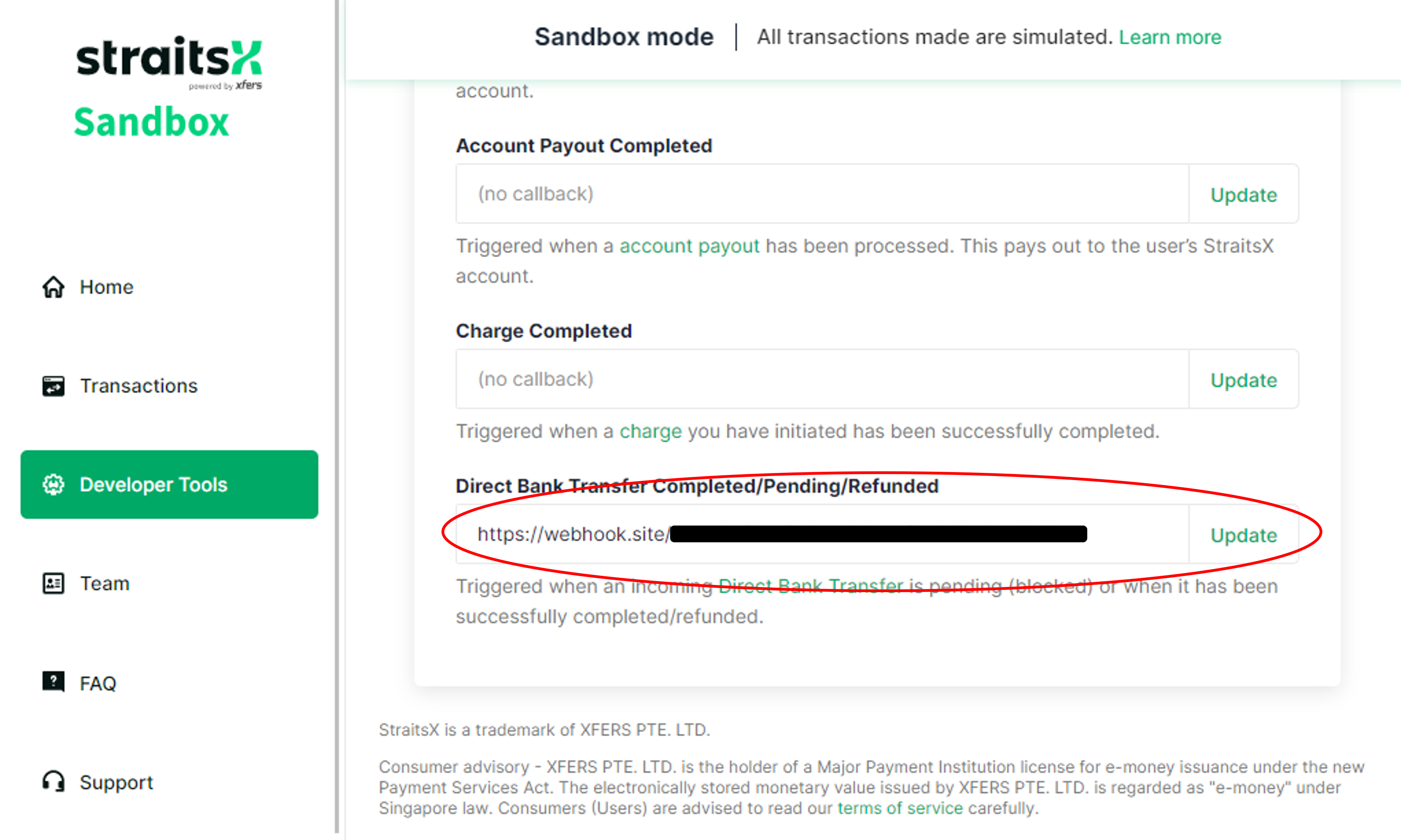

Adding a callback URL in sandbox mode

πŸ“˜

Add the callback URL on the dashboard to receive a callback when the transaction has been completed.

curl --location --request PUT 'https://sandbox.xfers.io/api/v3/sandbox/customer_profile/customer_profile_08d5ffe5-8a02-4dc2-aabb-9057b8ab3c65/bank_accounts/?verification_status=verified' \
--header 'X-XFERS-APP-API-KEY: t4wsjxpwtk6o9tz20j4baj4ifwibin100py1vrvfsqh'
  • In the sandbox environment, you can make a mock bank transfer by initiating a mock bank transfer payment.
  • Input a name under source_bank_account_holder_name to test if the sender name is matched correctly to your user's name.

Step 3b β€” Make a bank transfer (Production)

To make a bank transfer payment, your users will need to deposit funds via their personal bank.

Add payee details example
968968

Adding a payee to make a fund transfer (Last Updated: 13 Mar 2022)

πŸ“˜

For a full list of bank accounts supported by StraitsX, click here.

Step 4 β€” Confirm deposit has been received

Securing your callback

When the payment is received, we will send a callback to the URL indicated on the StraitsX Business Dashboard. The callback can be verified using the HMAC-SHA256 algorithm.

Learn more about how to secure your callback β†’

Callback Response
amount=89.35&bank_account_no=0393123432&created_at=2022-03-09T11%3A56%3A17%2B08%3A00&end_to_end_ref=test+comment&fees=0.49&id=contract_7mowjipsez3ryhs9auko03eajihpbeop&idempotency_id=ETA2022030911561153700&merchant_ref=ref_0d1w4m0xepp40&status=completed&type=Direct+bank+transfer
Parameter NameDescriptionExample Value
amountAmount transferred89.35
bank_account_noFAST bank account number0393123432
created_atTime of creation2022-03-09T11%3A56%3A17%2B08%3A00
end_to_end_refUser's Transaction Notes / Commentstest+comment
feesFees incurred0.49
idContract IDcontract_7mowjipsez3ryhs9auko03eajihpbeop
idempotency_idUnique ref no to prevent double transactionETA2022030911561153700
merchant_refUnique ID indicated in Create a virtual bank account APIref_0d1w4m0xepp40
statusTransaction Status: completed/pending/cancelledcompleted
typeType of transactionDirect+bank+transfer

πŸ‘

You may use the merchant_ref parameter to match the incoming bank transfers to verify if you have received the correct amount.

Summary

21842184

Click to enlarge

Next step β€” Sending a payout

Learn more about how to send a payout to your user's bank account.


Try it out!

Getting started with StraitsX APIs is easy. Our business development and integration teams will be with you every step of the way. If you have any questions or would like to connect with our team, please do so via Support!
